Are you choosing high-temperature gasket materials based on maximum temperature ratings alone? This approach leads to costly failures in production environments where gaskets must withstand complex conditions beyond simple heat resistance.
The biggest mistake in high-temperature gasket projects is believing that the highest temperature-rated material automatically provides the most reliable sealing. Real-world sealing performance depends on temperature, pressure, media, compression, thermal cycling, and time working together - not just a single temperature specification.
I have seen this mistake cost companies weeks of development time, thousands in tooling changes, and damaged customer relationships. Let me share what really matters when selecting materials for high-temperature sealing applications.

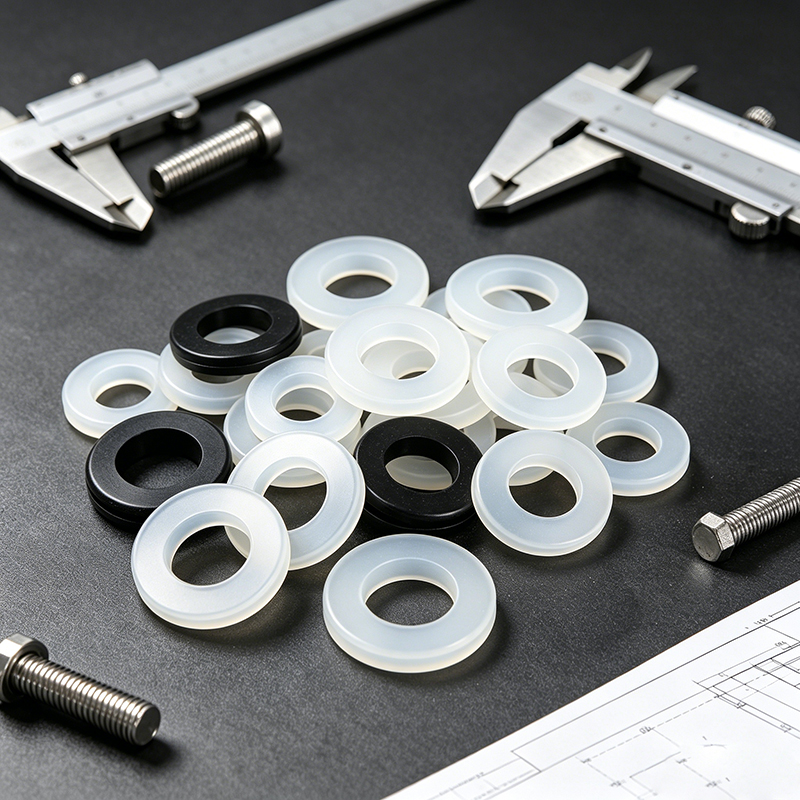

What Makes Material Selection Go Wrong in High-Temperature Applications?
Choosing materials based on temperature ratings alone creates a false sense of security. Most project teams follow this flawed logic without realizing the hidden risks.
The core problem is not whether a material can survive a specific temperature, but whether it can maintain adequate sealing stress under real operating conditions including pressure, chemical exposure, compression, and thermal cycling over time.
Here is what actually happens in failed projects. A customer specifies 200°C operating temperature. Purchasing finds a material rated for 250°C or 300°C. The project team assumes higher temperature rating equals better safety margin. This logic seems reasonable but often proves completely wrong.
The real challenge in high-temperature sealing is not surviving heat exposure. The challenge is maintaining sealing force when the material experiences temperature plus pressure plus chemical media plus compression plus time plus thermal cycling simultaneously. A material that handles 300°C in short-term testing may fail completely under 250°C with sustained compression, high pressure, chemical exposure, and repeated heating cycles.
Most supplier datasheets highlight continuous temperature, maximum temperature, and short-term temperature ratings. But gasket failures typically occur through compression set where long-term high temperature prevents material recovery, leading to decreased contact pressure and leakage. Material hardening happens when high temperature, oxidation, and chemical media combine to reduce elasticity, preventing the gasket from following slight flange movements. Material softening occurs when some materials lose stiffness at high temperatures, causing extrusion under pressure differential. Thermal cycling creates repeated expansion differences between the gasket material and metal flanges, constantly changing contact conditions until leakage develops.
The most dangerous decision logic I see is this simple path: maximum temperature leads to material temperature chart leads to highest rated material selection. The correct approach should be: actual temperature leads to duration leads to pressure leads to media leads to compression state leads to thermal cycling leads to seal geometry leads to material properties leads to validation testing.

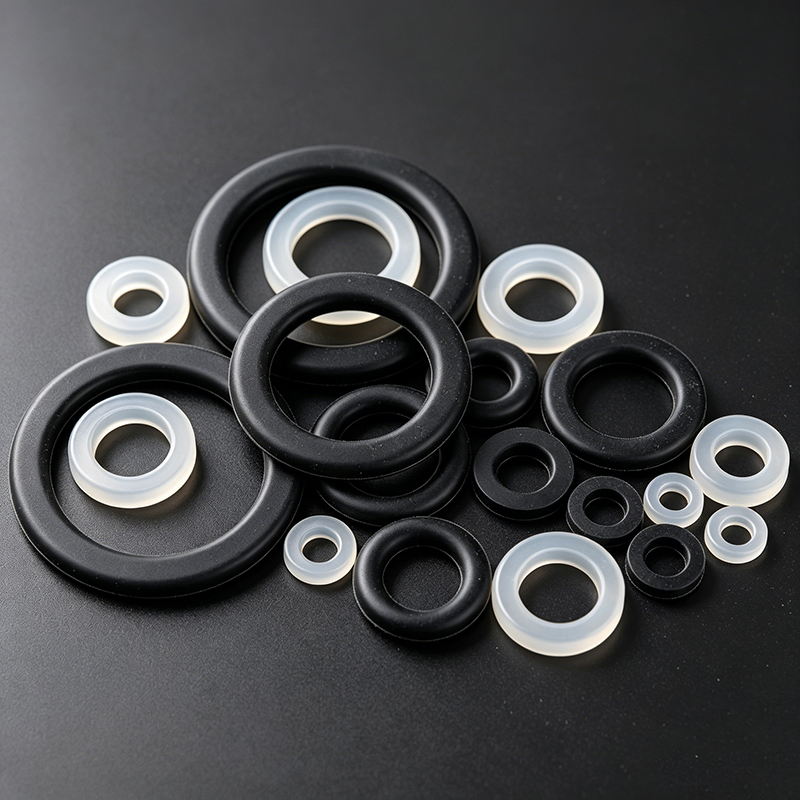

How "Higher Temperature Rating" Materials Still Fail in Production?
I worked on an industrial thermal fluid equipment project where this exact scenario played out. The application was heating circulation system flange sealing with custom high-temperature rubber gaskets for 180,000 annual volume.
Despite selecting a higher temperature-rated material for 200°C operation, the gaskets developed leakage after extended operation due to compression stress relaxation and thermal cycling effects that were never properly validated.
The customer specified maximum 200°C operation with sustained thermal cycling, flange connections, long-term operation, and zero media leakage tolerance. But the RFQ missed critical details like normal operating temperature, peak temperature duration, internal pressure, specific media composition, flange surface condition, bolt preload, seal compression ratio, thermal cycle count, and allowable leakage rate.
During sourcing, suppliers offered two options. Option A used conventional high-temperature elastomer. Option B used higher temperature-rated elastomer. Purchasing chose Option B reasoning that higher temperature margin meant better safety. Nobody objected because the team only compared maximum temperature ratings without considering compression set, compression stress relaxation, media compatibility, thermal cycling behavior, seal stress retention, or actual installation compression.
The failure developed in stages. Laboratory static testing passed with no obvious leakage in short-term high-temperature exposure, so the project moved to production validation. After weeks of continuous operation, seepage appeared as the seal material experienced combined high temperature, compression, pressure, and media exposure, gradually changing material properties. Thermal cycling made leakage worse as equipment stopped and cooled, then restarted and heated, repeatedly cycling between room temperature and operating temperature while the gasket and metal flange expanded differently, and material compression stress continued declining.
The most problematic issue was intermittent failures across the production batch. Not all units failed immediately. Some equipment leaked, some operated normally, leakage probability increased at high temperature, and problems were more obvious after shutdown and restart. Initially, the project team suspected supplier batch consistency problems. Further analysis revealed that material selection and seal design were never properly validated for actual operating conditions.
This failure cost 8-10 weeks for material reselection, design changes, sampling, and validation. Costs included new tooling, new materials, samples, laboratory testing, existing inventory quarantine, and customer site inspections. Material changes required repeating some certifications. The customer questioned why higher temperature-rated materials still caused equipment leakage. Root cause analysis showed primary failure was incorrect high-temperature seal material selection logic, secondary failure was specifications missing pressure, media, compression ratio, thermal cycling, lifetime, and leakage standards, and tertiary failure was purchasing mistaking temperature rating for high-temperature sealing reliability.
What Happens When You Focus on Operating Conditions Instead of Temperature Ratings?
A successful project took a completely different approach when developing high-temperature flange gaskets for industrial equipment requiring high temperature, sustained pressure, specific media, long operation time, and multiple thermal cycles.
Instead of selecting materials by maximum temperature rating, the engineering team defined complete operating conditions including normal temperature, peak temperature exposure time, pressure levels, media composition, compression requirements, thermal cycle count, and acceptable leakage limits before material selection.
The original design only specified high-temperature rubber gasket for 200°C temperature. The supplier was ready to recommend materials based on temperature requirements alone. But the application engineer recognized that 200°C was just one parameter without answering how long at 200°C, what pressure level, what media exposure, what flange compression, how many thermal cycles, and what leakage tolerance.
The project team paused material selection to properly define operating conditions. They separated actual working conditions into temperature with normal operating, maximum, minimum, and duration specifications. Pressure included normal, peak, and pressure cycling requirements. Media specification became as specific as possible rather than just "chemical fluid." They added thermal cycling requirements and expected service duration.
Material screening expanded beyond simple temperature comparison to evaluate EPDM for hot water, steam, and some water-based media in weathering environments but not suitable for oil environments by default. Silicone typically offers wide temperature windows but requires validation for compression set, tear resistance, extrusion, and dynamic sealing performance under high pressure and dynamic conditions. FKM suits many high-temperature oil, fuel, and chemical media applications but specific grades still differ significantly, so all FKM cannot be considered equivalent. ACM and AEM have value in certain automotive and high-temperature oil environments but require confirmation based on media, temperature, pressure, and dynamic conditions. PTFE and composite materials can work for extreme temperature or chemical environments but behave differently from traditional rubber elastomers, requiring seal structure and installation design reevaluation.
The team redefined seal compression beyond just gasket thickness 3.0mm to include free thickness, installed thickness, compression percentage, compression range, flange flatness, surface roughness, and bolt load. High-temperature seals ultimately depend on actual sealing contact conditions, not material names.
Validation expanded to include high-temperature static testing for sealing retention capability, thermal cycling testing simulating cold to hot to cold repeated cycles, compression set testing confirming long-term high-temperature material recovery ability, media compatibility testing confirming material resistance to swelling, hardening, softening, cracking, and mass changes, and actual flange assembly testing of real seal structures rather than just material specimens.
After proper redesign, high-temperature sealing remained stable, thermal cycling showed no abnormal leakage, material performance met operating conditions, customer acceptance passed, and production proceeded smoothly. Without these adjustments, the most likely outcome would have been initial testing pass, production launch, long-term high-temperature operation, compression stress decline, insufficient sealing contact pressure, thermal cycling acceleration, leakage development, field repairs, and material supplier disputes.

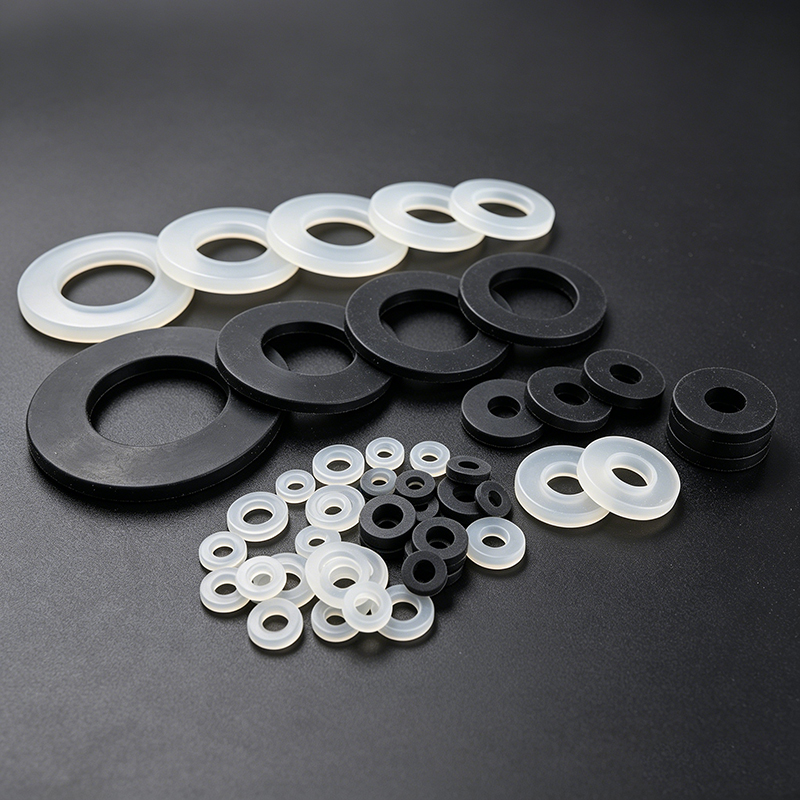

How Specification Documents Create Hidden Material Selection Traps?
Incomplete specifications create the biggest risks in high-temperature gasket projects. The most dangerous specification simply states "Material: High Temperature Rubber" without defining polymer family, specific grade, hardness requirements, applicable temperature range, media compatibility, required certifications, or critical physical properties.
Proper material specifications must include complete operating conditions, performance requirements, and validation criteria rather than generic material categories that leave critical selection factors undefined.
Hardness definitions like "70 Shore A" do not guarantee the material maintains 70 Shore A at high temperatures. Material hardness changes with temperature, aging, and media exposure. High-temperature seal projects cannot rely on room-temperature hardness measurements alone.
Dimensional tolerance definitions directly affect installation compression. For example, design thickness 3.00mm with actual thickness variations that change installation compression ratio can alter contact pressure, flange loading, sealing capability, and extrusion risk. Critical seal dimensions require separate tolerance definitions.
Compression ratio specifications stating "Compression: 20%" are incomplete without clarifying 20% relative to what dimension and whether working conditions allow additional compression during operation.
Working environment definitions for high-temperature projects must simultaneously specify temperature including normal, maximum, minimum, and duration parameters. Pressure must include normal, peak, and pressure cycling conditions. Media specifications should be as specific as possible rather than generic terms like "Chemical Fluid" by identifying actual media or composition ranges.
Certification requirements vary by application including automotive, medical, food contact, electrical, flame retardancy, and environmental compliance standards. The most dangerous situation is discovering material certifications do not meet customer requirements after production launch.
Testing conditions cannot simply state "High Temperature Test: Pass" but must define temperature, time, pressure, media, compression state, cycle count, and leakage standards for meaningful validation.
High-temperature seals commonly experience short-term pass but long-term failure, requiring temperature × time × compression × media lifetime validation logic.
Dimensional definitions for high-temperature seal components must distinguish free state, installed state, compressed state, and maximum allowable compression since free size does not equal installation size.
Responsibility boundaries cannot allow customers to only require "No Leakage" while suppliers do not know pressure, temperature, media, installation, flange condition, or allowable leakage rate. When leakage occurs, customers claim "product nonconformance" while suppliers claim "customer operating conditions exceed specifications" representing typical OEM responsibility boundary definition failure.

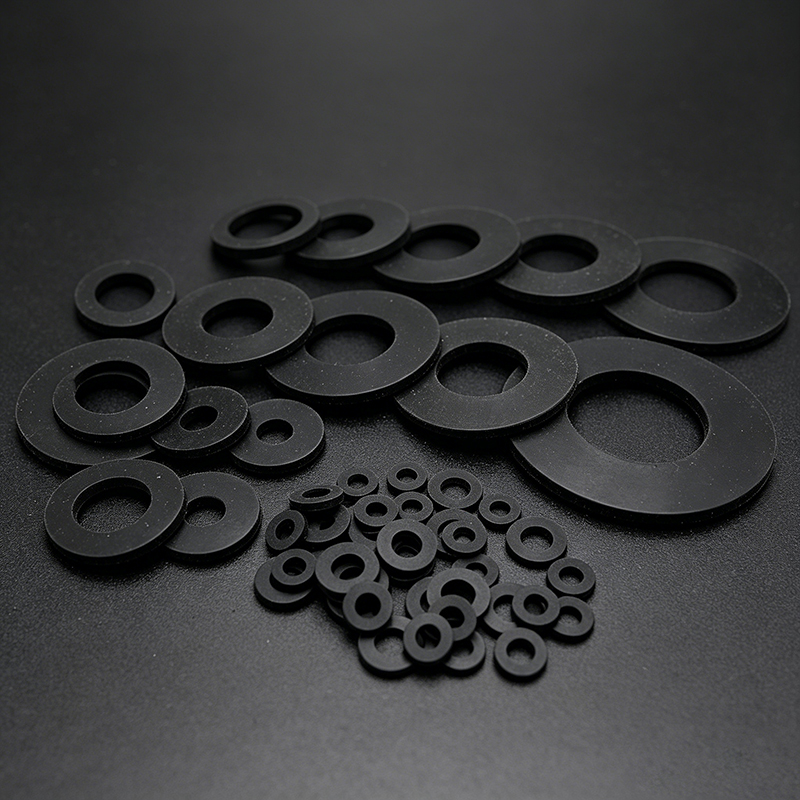

What Project-Level Risk Control Strategy Works for High-Temperature Seals?
Technical leaders must define real operating conditions before material selection by establishing required parameters including temperature normal/peak/duration, pressure normal/peak, specific media identification, installation compression range, thermal cycle count, target service life, and clear leakage acceptance criteria. Material selection should not proceed without these parameters.
Effective high-temperature gasket projects require systematic risk control from initial specification through production validation, focusing on actual operating conditions rather than simple material temperature ratings.
Material selection leaders should build candidate material matrices comparing not just temperature rating but comprehensive properties including temperature capability, media compatibility, compression set, tensile strength, elongation, tear resistance, hardness, volume change, aging resistance, and stress relaxation to select materials with lowest overall risk.
Structural engineers must control seal compression by confirming compression ratio, groove dimensions, flange flatness, surface roughness, extrusion clearance, installation orientation, and bolt preload. Correct material selection with incorrect compression design still causes leakage.
Purchasing leaders should prohibit sourcing based only on material names. RFQ cannot simply specify FKM, Silicone, or EPDM but must include specific grade plus performance requirements plus testing conditions. Different suppliers providing the "same material" may have significantly different actual performance.
SQE should establish batch control tracking raw material lot to compound lot to production lot to inspection lot to shipment lot ensuring traceability when leakage occurs.
Design validation should include DV-01 high-temperature static sealing, DV-02 high-temperature plus pressure, DV-03 high-temperature plus actual media, DV-04 thermal cycling, DV-05 compression set, and DV-06 actual flange assembly testing for real applications.
Production validation should not rely on single sample validation but consider different production batches and when necessary different material batches to verify that material and production variations do not affect final sealing performance.
Production monitoring should track hardness trends, critical dimensions, thickness, appearance, material batch, cure state, and key performance parameters. High-risk high-temperature seal components should establish periodic performance revalidation rather than relying completely on first article validation.
Change management should not treat any of these changes as simple "equivalent substitution": polymer, compound, grade, supplier, manufacturing site, hardness, filler, curing system, geometry, or thickness. Even "same material from different supplier" requires engineering evaluation.
Final acceptance cannot rely only on material certificate plus dimension report but should confirm material compliance, dimension compliance, installation compression compliance, high-temperature performance compliance, media compatibility compliance, pressure test compliance, thermal cycling compliance, and leakage standard compliance.
Risk warning mechanisms should identify red risks including high-temperature leakage, severe material hardening, cracking, extrusion, compression set exceeding limits, or thermal cycling seal failure requiring immediate production stop or batch quarantine. Yellow risks including hardness trend changes, thickness trend drift, compression set approaching limits, material batch changes, or supplier raw material source changes require engineering review. Green risks involving only non-critical appearance changes or dimensional variations not affecting installation and sealing function follow normal quality control.
Conclusion
High-temperature gasket material selection should focus on maintaining sealing stress under actual operating conditions rather than achieving maximum temperature ratings alone.
