Picking the wrong gasket material can turn a simple sealing problem into a costly field failure. Most engineers start by comparing material properties on datasheets, but this approach misses the real question.
The right gasket material isn't the one with the best general properties - it's the one that maintains sealing performance under your actual operating conditions throughout the entire service life. Material selection should start with your application requirements, not material comparisons.
I've seen too many projects fail because someone chose a material based on temperature ratings or price alone. The real engineering challenge is much deeper than that.

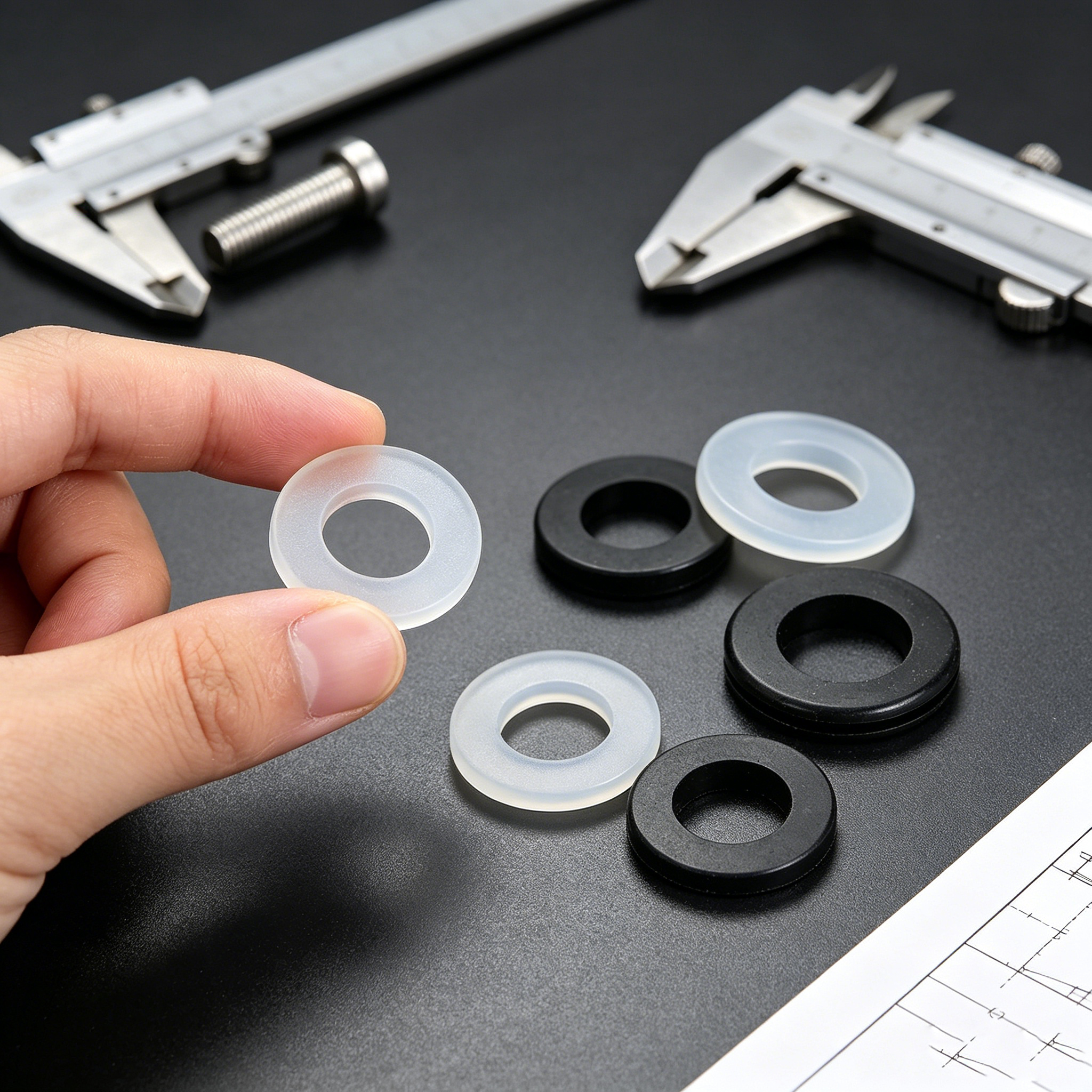

Why Do Most Engineers Start With the Wrong Question?
When I review RFQs, I often see the same approach. Engineers ask "Should I use silicone, EPDM, or NBR?" This seems logical, but it's backwards.
Starting with material families before defining your application is like choosing a car engine before deciding whether you need a race car or a delivery truck. The application should drive the material choice, not the other way around.
I worked on a project where the customer specified EPDM because their previous product used it successfully. But their new application involved different temperatures, pressures, and chemical exposure. The EPDM worked fine in the lab but failed after six months in the field. We had to redesign the entire sealing system because we started with the material instead of the application.
The correct sequence is: define your sealing requirements → identify failure risks → determine material properties needed → screen candidate materials → validate the complete system. This takes more time upfront but prevents expensive failures later.
Most material selection mistakes happen because teams skip the first two steps. They jump straight to comparing elastomer families without understanding what they're really trying to achieve. This creates a false sense of engineering rigor while missing the actual technical challenge.

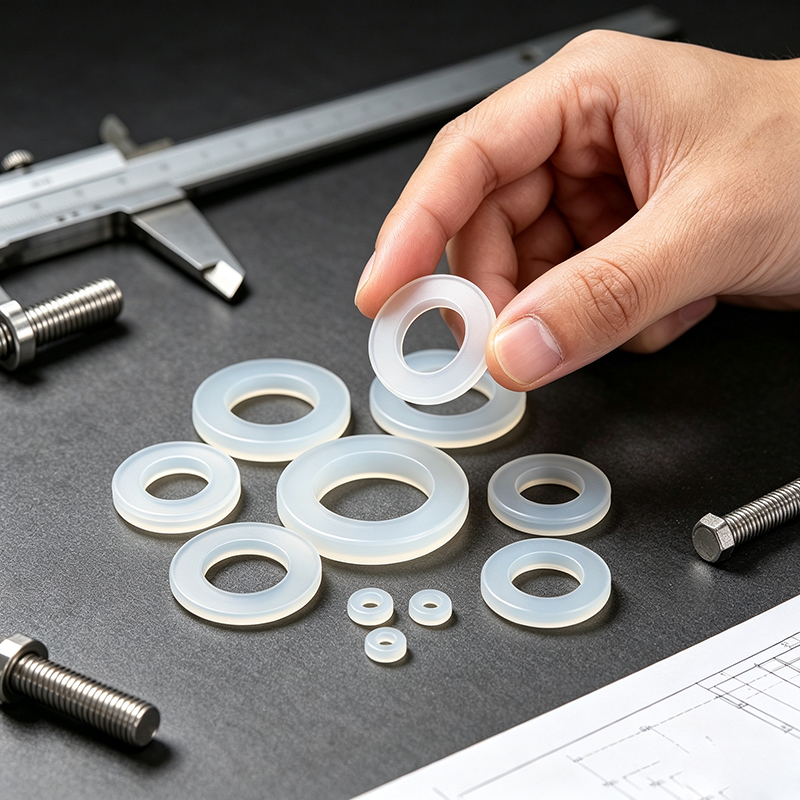

What Environmental Conditions Will Actually Destroy Your Gasket?
Every gasket operates in a specific environment, but most specifications only capture part of the story. I need to know what your gasket will actually experience, not just the nominal conditions.
Temperature alone doesn't cause gasket failure - it's the combination of temperature plus compression plus chemical exposure plus time that creates the real failure mechanism. You need to map the complete operating envelope.
Here's what I ask every customer: What is the minimum and maximum temperature? What chemicals will contact the gasket? What pressure will it see? How much compression? Any vibration or movement? Indoor or outdoor installation? Expected service life? Maintenance schedule?
I had a customer specify "oil resistant" for a hydraulic application. That's not enough information. Which oil? What temperature? What pressure? Continuous exposure or intermittent? The answers completely changed our material recommendation.
Consider a gasket in an outdoor electrical enclosure. The specification might say "weather resistant, -40°C to +85°C." But what about UV exposure? Ozone? Temperature cycling? Humidity changes? Ice formation? Each factor affects material selection differently.
The most dangerous assumption is that your gasket operates under steady-state conditions. Real applications involve thermal cycling, pressure changes, vibration, and chemical contamination. Your material needs to handle the worst-case combination, not just individual conditions.
| Environmental Factor | Why It Matters | Common Oversight |
|---|---|---|
| Temperature cycling | Causes expansion/contraction stress | Only considering max temperature |
| Chemical concentration | Dilute vs concentrated solutions behave differently | Assuming "chemical resistant" is enough |
| Compression duration | Long-term compression set reduces sealing force | Only testing initial compression |
| UV + ozone + heat | Combined degradation accelerates aging | Testing factors individually |

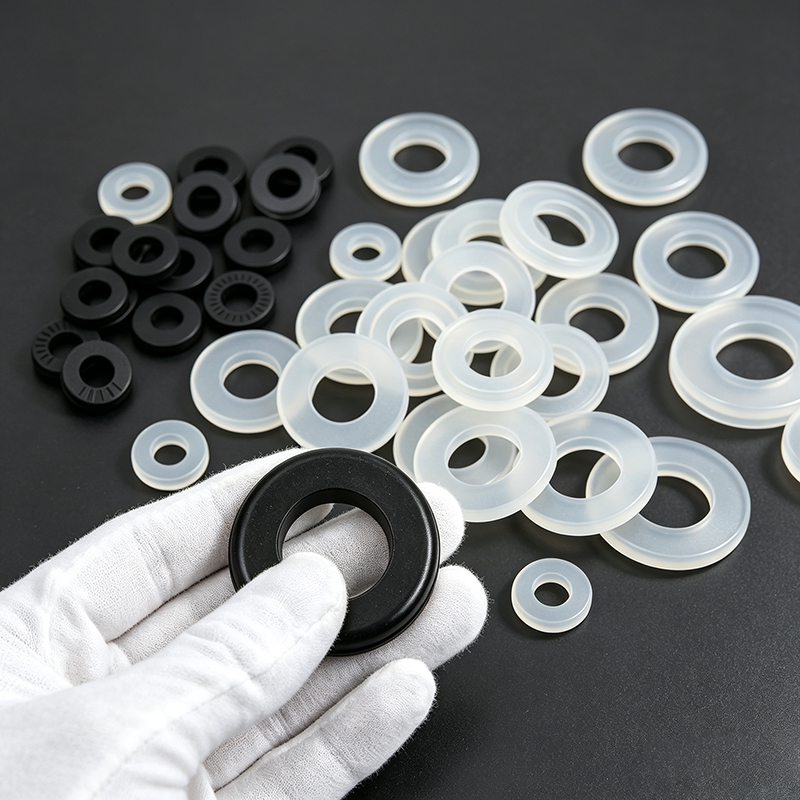

How Do You Identify the Real Failure Mechanism?
Before selecting any material, I need to understand how your gasket is most likely to fail. This determines which material properties actually matter for your application.
Gasket failure isn't random - it follows predictable patterns based on operating conditions. Identifying the dominant failure mechanism early lets you choose materials that resist that specific failure mode.
The most common failure mechanisms I see are: chemical attack (swelling, hardening, cracking), thermal degradation (loss of elasticity, brittleness), compression set (permanent deformation, loss of sealing force), mechanical damage (abrasion, tearing), and environmental aging (ozone cracking, UV degradation).
Each mechanism requires different material strategies. Chemical attack needs compatible elastomer chemistry. Thermal degradation needs heat-stable compounds. Compression set needs materials with good recovery properties. Mechanical damage needs tough, tear-resistant materials.
I worked with a customer whose gaskets kept failing in a food processing application. They assumed it was chemical attack from cleaning agents and kept trying different "chemical resistant" materials. The real problem was thermal shock from hot washdown cycles followed by cold operation. Once we identified thermal cycling as the failure mechanism, we selected a material with better thermal stability and flexibility. Problem solved.
Here's my failure analysis process: examine failed parts → identify damage patterns → correlate with operating conditions → determine root cause → select materials that resist that mechanism. This is much more effective than guessing based on general material properties.
The key insight is that the same material can fail differently under different conditions. NBR might fail from chemical attack in one application and compression set in another. Understanding your specific failure risk guides material selection much better than generic compatibility charts.
Why Material Datasheets Don't Tell the Whole Story?
I see engineers make material decisions based on datasheet properties, but this often leads to problems. Datasheets show how materials perform under standardized test conditions, not your actual application conditions.
A material can look perfect on paper and still fail in your product. Datasheets provide screening data, not application validation. You need to test materials under your actual operating conditions.
Standard tests use specific temperatures, test fluids, exposure times, and stress conditions. Your application probably uses different conditions. The material behavior can change significantly when conditions change.
I had a customer select FKM based on its excellent high-temperature rating. But their application involved intermittent high temperature with continuous compression. The FKM developed compression set problems that weren't apparent from the temperature rating alone. We needed to test compression set at temperature to understand real performance.
Consider oil resistance testing. Standard tests might use specific test oils at defined temperatures for set time periods. But your application might use different oils, different temperatures, different exposure patterns. The correlation between test results and real performance isn't automatic.
Datasheet properties also represent typical values for material families, not specific compounds. Two "EPDM" materials can have very different performance depending on the actual formulation. The supplier's specific compound matters more than the general elastomer family.
| Datasheet Property | What It Shows | What It Doesn't Show |
|---|---|---|
| Temperature rating | General thermal capability | Performance under compression at temperature |
| Chemical resistance | Compatibility with standard test fluids | Behavior with your specific chemicals |
| Hardness | Shore durometer value | Sealing performance under actual compression |
| Tensile strength | Ultimate material strength | Fatigue resistance under cycling |
My approach is to use datasheets for initial screening, then validate candidate materials under application-specific conditions. This gives you confidence that the selected material will actually work in your product.
When Does Compound Selection Matter More Than Material Family?
Most specifications stop at the elastomer family level - "use EPDM" or "use silicone." But the actual compound formulation often matters more than the base elastomer for application performance.
The same elastomer family can include hundreds of different compounds optimized for different applications. Specifying only the elastomer family gives your supplier too much freedom to choose based on convenience rather than performance.
![Elastomer family vs specific compound selection](https://rubber-feet.com/wp-content/uploads/2026/08/23-1.jpg"Compound Selection Importance")
![https://rubber-feet.com/wp-content/uploads/2026/08/23-1.jpg"Compound](https://rubber-feet.com/wp-content/uploads/2026/08/23-1.jpg"Compound){kind=link}
Within any elastomer family, compounds vary in cure systems, fillers, plasticizers, antioxidants, and other additives. These variations create different temperature ranges, chemical resistance, mechanical properties, and processing characteristics.
For example, I can formulate NBR compounds for low-temperature flexibility, high-temperature stability, fuel resistance, or compression set resistance. Each optimization involves trade-offs that affect other properties. The "best" NBR depends entirely on your application priorities.
I worked with a customer who specified "70 Shore A silicone" for a high-temperature gasket. We provided three different 70A silicone compounds with different temperature capabilities and compression set resistance. Testing showed significant performance differences even though all met the hardness specification.
This is why change control matters. If your supplier switches compounds during production, you might get very different performance even within the same elastomer family. I always recommend specifying compound requirements or approving specific compounds rather than just elastomer families.
The practical approach is to work with your supplier to identify the optimal compound for your application, then lock that specific formulation into your specification. This prevents uncontrolled substitutions that can affect performance.
| Specification Level | Control Level | Risk Level |
|---|---|---|
| "Rubber gasket" | Very low | Very high |
| "EPDM gasket" | Low | High |
| "EPDM, 70A, oil resistant" | Medium | Medium |
| "EPDM compound XYZ-123" | High | Low |
| "Performance specification + approved compounds" | Very high | Very low |
How Do You Validate Material Selection Before Production?
The most expensive time to discover material problems is after production starts. I always recommend validation testing that simulates your actual application conditions as closely as possible.
Validation should answer one question: Will this material maintain adequate sealing performance throughout the expected service life under actual operating conditions? Initial sealing tests aren't enough.
My standard validation process includes: initial sealing tests → environmental exposure → post-exposure sealing tests → accelerated aging where appropriate → final performance verification. This sequence reveals whether the material can maintain performance over time.
The environmental exposure should match your application as closely as possible. If your gasket sees temperature cycling, test with temperature cycling. If it sees chemical exposure, use your actual chemicals. If it experiences compression, maintain compression during exposure.
I had a project where initial samples sealed perfectly, but after thermal cycling exposure, the gaskets showed reduced sealing force. We caught this during validation and switched to a more thermally stable compound. Without this testing, we would have discovered the problem in the field.
Accelerated aging can help predict long-term performance in shorter timeframes. But acceleration factors need to be validated for your specific materials and conditions. Improper acceleration can give misleading results.
The key insight is that sealing performance can degrade gradually over time. A gasket might seal adequately when new but fail to maintain sealing force after environmental exposure. Your validation needs to catch this degradation before production.
| Validation Stage | What It Tests | Why It Matters |
|---|---|---|
| Initial sealing | New gasket performance | Baseline capability |
| Environmental exposure | Material stability | Degradation resistance |
| Post-exposure sealing | Retained performance | Long-term reliability |
| Accelerated aging | Projected lifetime | Service life prediction |
| Production validation | Consistency | Manufacturing control |

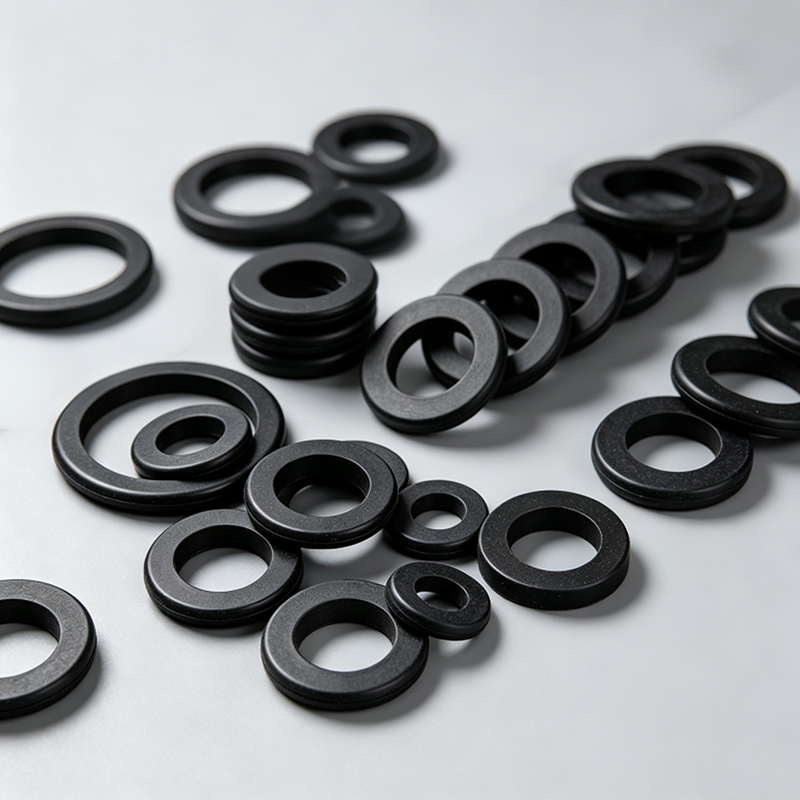

What Are the Hidden Costs of Wrong Material Selection?
When engineers focus only on material cost, they often miss the total cost of ownership. The cheapest material can become the most expensive choice if it causes field failures.
Gasket material cost is usually a tiny fraction of total product cost, but gasket failure can shut down entire systems. The right material selection is insurance against much larger costs.
I've seen projects where a $0.50 gasket material decision led to thousands of dollars in field service costs. The math is simple: gasket cost versus system downtime, warranty claims, customer dissatisfaction, and replacement costs.
Consider a typical failure scenario: wrong material selected → passes initial testing → production approved → field installation → gradual performance degradation → system failure → emergency service call → system diagnosis → gasket replacement → system restart → customer complaint → reputation impact.
The hidden costs include: emergency service dispatch, technician time, replacement parts, system downtime, lost production, customer relationships, and potential liability. These costs can be hundreds or thousands of times the original gasket cost.
I worked with a customer whose $2 gasket failure caused a $50,000 production line shutdown. The gasket was selected primarily on price, but the compound wasn't suitable for their high-temperature application. A $4 gasket with better thermal stability would have prevented the entire problem.
The smart approach is to calculate total cost of ownership, not just purchase price. Include development costs, validation costs, tooling costs, inventory costs, failure costs, and service costs. This usually shows that spending slightly more on the right material saves money overall.
| Cost Element | Low-Cost Material | Right Material |
|---|---|---|
| Material cost | $1.00 | $2.00 |
| Validation cost | $500 | $1,000 |
| Failure probability | 10% | 1% |
| Failure cost | $10,000 | $10,000 |
| Expected total cost | $1,501 | $1,102 |
Conclusion
Choosing the right gasket material starts with understanding your application, not comparing material properties. The best material is the one that maintains sealing performance under your actual operating conditions for the required service life, regardless of its general reputation or cost.
