What Are the Hidden Pitfalls When Choosing Rubber Cable Grommets?

Selecting the wrong rubber cable grommet can destroy your entire electrical system. One simple mistake leads to cable damage¹, safety risks, and costly repairs.

Rubber cable grommets protect cables by providing a secure seal where cables pass through panels. The right grommet prevents cable wear, moisture ingress², and electromagnetic interference³ while maintaining proper electrical insulation.

I learned this lesson the hard way when a client's project failed because they chose standard-sized grommets without considering their specific cable requirements. Let me share what I discovered about avoiding these costly mistakes.

Why Do Most People Choose the Wrong Grommet Size?

The biggest mistake happens when people assume all cables need the same protection. This thinking costs projects thousands in repairs and delays.

Grommet sizing requires precise measurements of cable diameter, panel thickness, and environmental conditions⁴. Incorrect sizing leads to poor sealing, cable damage¹, and system failure.

I remember working with a manufacturing company that installed cable grommets for their heavy machinery. They selected standard-sized rubber grommets without measuring their actual cable diameters. Within weeks, cables started showing wear marks where they rubbed against oversized grommets.

The problem became worse when moisture entered through loose-fitting grommets. Water damaged their electrical connections and caused equipment shutdowns. Their production line stopped for three days while we replaced all the grommets with properly sized ones.

Here's what happens with wrong sizing:

You need to measure three things: cable outer diameter, panel hole size, and expected cable movement. Each measurement affects which grommet will work best. Small differences in size can mean the difference between perfect protection and complete failure.

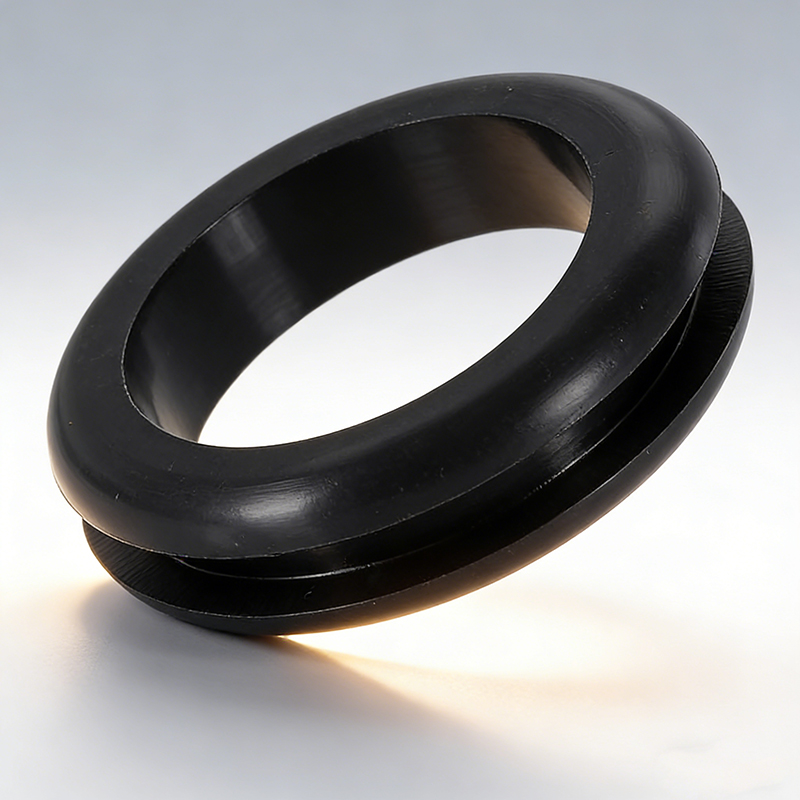

How Do Environmental Conditions Affect Grommet Selection?

Temperature, chemicals, and UV exposure destroy standard rubber grommets quickly. Most people ignore these factors until their grommets fail.

Environmental conditions determine material selection for cable grommets. Silicone handles high temperatures, EPDM resists weather, and NBR withstands oil exposure.

I worked on an automotive project where engineers specified standard rubber grommets for engine compartments. The high temperatures made the rubber brittle within months. Cracked grommets allowed water and dirt to reach sensitive wiring.

We switched to silicone grommets⁵ rated for 200°C continuous operation. The new grommets maintained flexibility and sealing properties despite extreme temperature cycling. This change prevented warranty claims and improved vehicle reliability.

Different environments need different materials:

Chemical resistance matters more than most people realize. A pharmaceutical company learned this when cleaning solvents dissolved their standard grommets. Chemical exposure created gaps that allowed contamination into sterile areas. We provided NBR grommets⁶ with specific chemical resistance ratings that solved their contamination issues.

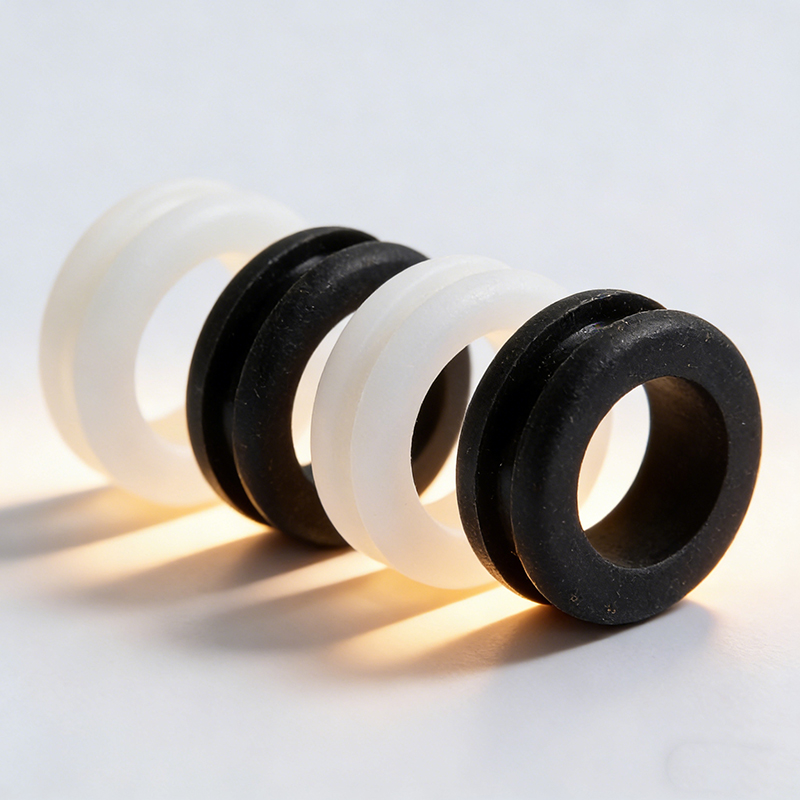

What Installation Mistakes Cause Grommet Failure?

Poor installation creates more problems than wrong grommet selection. Simple installation errors lead to immediate seal failure and cable damage¹.

Proper grommet installation requires correct panel preparation, sequential assembly, and adequate cable strain relief⁷. Installation errors cause premature failure and safety hazards.

I've seen technicians force oversized cables through undersized grommets. This stretches the rubber beyond its elastic limit and creates permanent deformation. The stretched grommet loses its sealing ability and allows moisture penetration.

Another common mistake involves sharp panel edges. Rough or sharp holes cut grommet lips during installation. Once cut, grommets cannot maintain proper seals. We always recommend smooth, deburred holes with rounded edges.

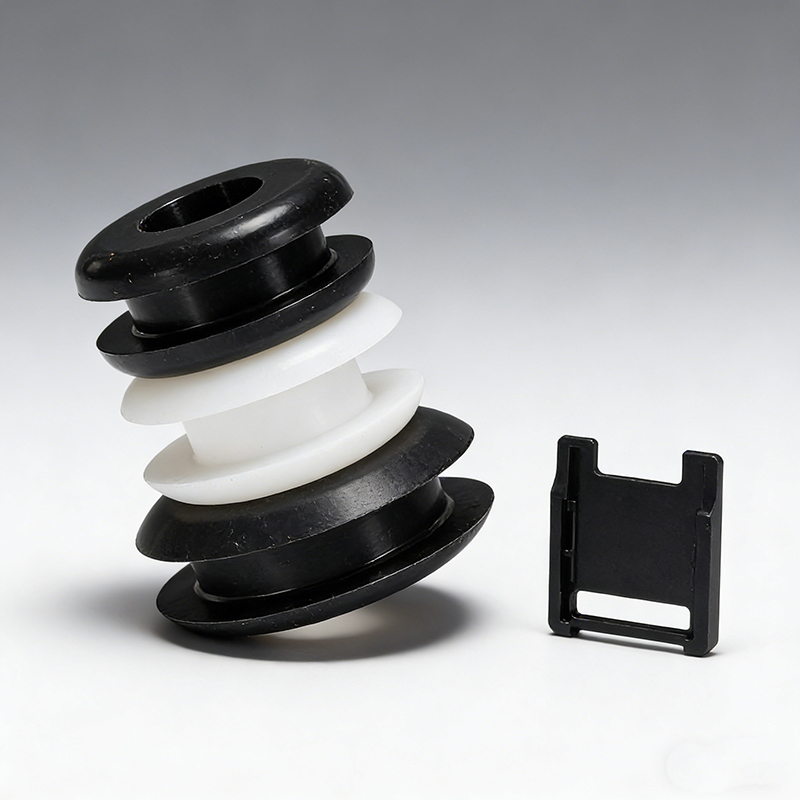

Here's the correct installation sequence:

1. Panel preparation: Create smooth, round holes with proper diameter
2. Grommet inspection: Check for defects before installation
3. Cable preparation: Remove sharp edges and add strain relief⁷
4. Installation: Insert grommet without stretching or forcing
5. Final check: Verify complete sealing around entire circumference

Strain relief prevents cable movement from damaging grommets. Without proper strain relief⁷, cables pull and twist inside grommets. This movement creates wear points that eventually cause seal failure. We recommend securing cables within 6 inches of grommet entry points.

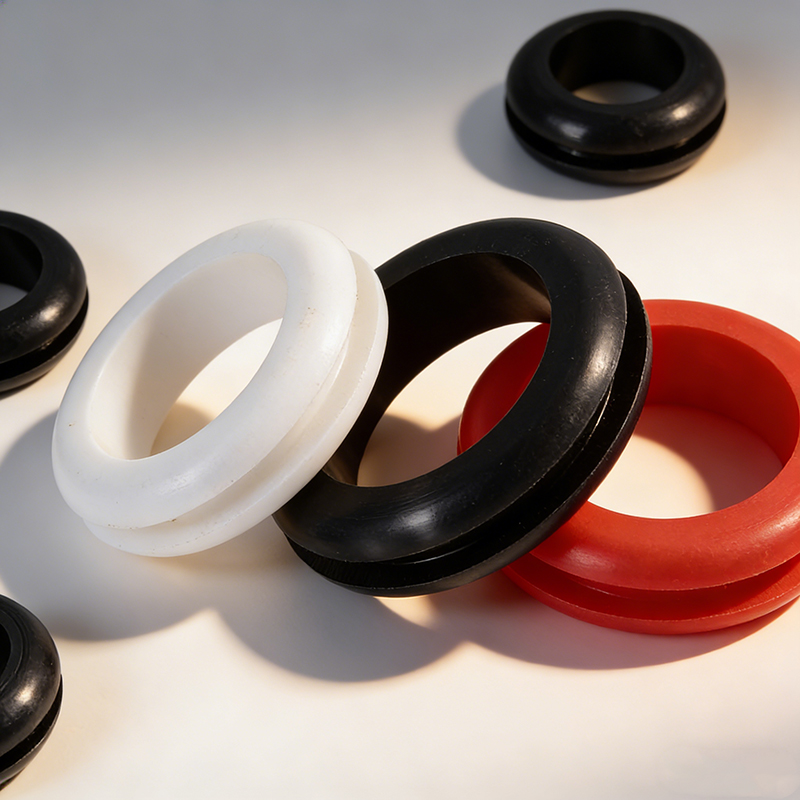

How Do You Ensure Long-Term Grommet Performance?

Regular maintenance and proper material selection extend grommet life significantly. Most failures happen because people install grommets and forget about them.

Long-term grommet performance depends on material quality, environmental protection, and regular inspection schedules. Quality grommets with proper maintenance last 10+ years in harsh conditions.

We manufacture grommets using premium rubber compounds⁸ that resist environmental degradation. Our silicone grommets⁵ maintain elasticity after years of temperature cycling. EPDM formulations resist UV damage that destroys standard rubber within months.

Quality starts with raw materials. We source rubber compounds from certified suppliers who provide consistent material properties. Each batch undergoes testing for hardness, tensile strength, and environmental resistance before production.

Our manufacturing process ensures dimensional accuracy within ±0.05mm. This precision guarantees proper fit and sealing performance. Consistent dimensions mean replacement grommets fit exactly like originals years later.

Maintenance recommendations include:

We provide technical support⁹ throughout your project lifecycle. Our engineering team helps select optimal materials and sizes for specific applications. This support prevents costly mistakes and ensures reliable performance from day one.

Conclusion

Choosing the right rubber cable grommet requires careful attention to sizing, materials, installation, and maintenance. These factors determine whether your electrical system operates reliably for years or fails within months.
