How to Prevent Excessive Vibration in Rotating Machinery?

Excessive vibration in rotating machinery can lead to serious issues. Many people are frustrated and confused when they encounter this problem, even after installing anti-vibration measures.

To effectively prevent excessive vibration¹, it is crucial to address the root causes like misalignment and imbalance² in the rotating system, rather than solely relying on dampening products.

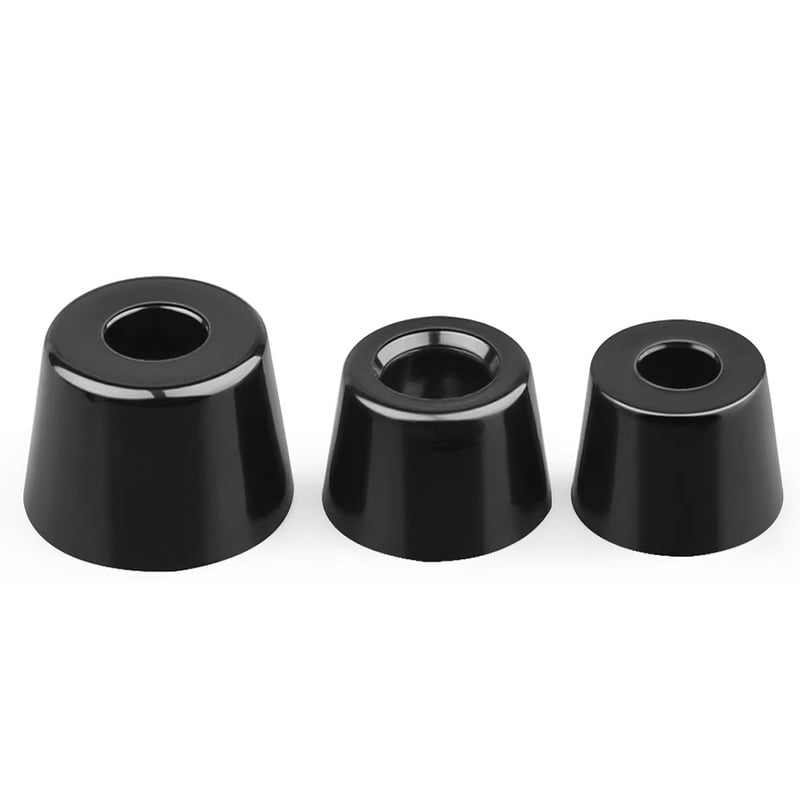

Many projects I've worked on have faced the same issue. Despite using anti-vibration mounts³, noticeable vibrations persist. This often leads us to believe the anti-vibration products are ineffective. However, the real problem often lies in factors that get overlooked.

What Are the Primary Causes of Vibration?

When dealing with rotating machinery, I’ve noticed a common oversight: engineers frequently neglect the importance of alignment and dynamic balancing⁴. These two factors are essential to ensuring smooth operation.

Take a typical case I was involved in: a medium-sized centrifugal fan vibrated persistently after installation.

• Vibration isolation base: ✔️
• Stable equipment foundation: ✔️
• Correct model of the vibration damper: ✔️

But the vibration continued, and bearing temperature increased abnormally. After thorough investigation, we found:

• There was a slight misalignment between the motor and fan shaft.
• The impeller was unbalanced.

The issue was clear: the source of vibration was not addressed, leaving the vibration system to absorb the impact rather than eliminate the cause.

How to Avoid This Problem?

If you are facing vibration issues in rotating equipment, start by addressing the source of the vibration. Here are some key areas to examine:

• Check if the shaft alignment is accurate.
• Ensure the rotor has undergone dynamic balancing⁴.
• Look for any loose components or insufficient structural rigidity⁵.
• Verify if the operational speed is close to the resonance frequency.

A crucial principle to remember is:

The vibration isolation system⁶ is meant to "reduce transmission," not "eliminate the source."

If the source of vibration is problematic, even the best isolation solutions will only provide partial relief.

In my approach to solving these issues, I don't immediately recommend vibration-damping products. Instead, I break down the sources of vibration:

• Is it due to imbalance?
• Is it a misalignment issue?
• Or is it structural resonance?

After identifying the root cause, I implement a systematic solution:

• For the source: recommend alignment correction or dynamic balancing⁴.
• For the transmission path: select appropriate anti-vibration mounts³ or isolation structures.
• For installation: avoid rigid short circuit connections.

Many projects experience significant vibration reduction after addressing basic corrections alongside suitable damping solutions, rather than relying solely on "stronger" dampers.

Conclusion

In summary, vibration issues in rotating machinery are a "system problem." They cannot be fully resolved by focusing on a single component. If you're struggling with equipment vibrations or encountering frequent resonance, abnormal bearing behavior, or excessive noise, feel free to share your equipment conditions with me.

Together, we can analyze the sources, transmission paths, and isolation solutions systematically, addressing the problem more effectively instead of continuously swapping out parts.
